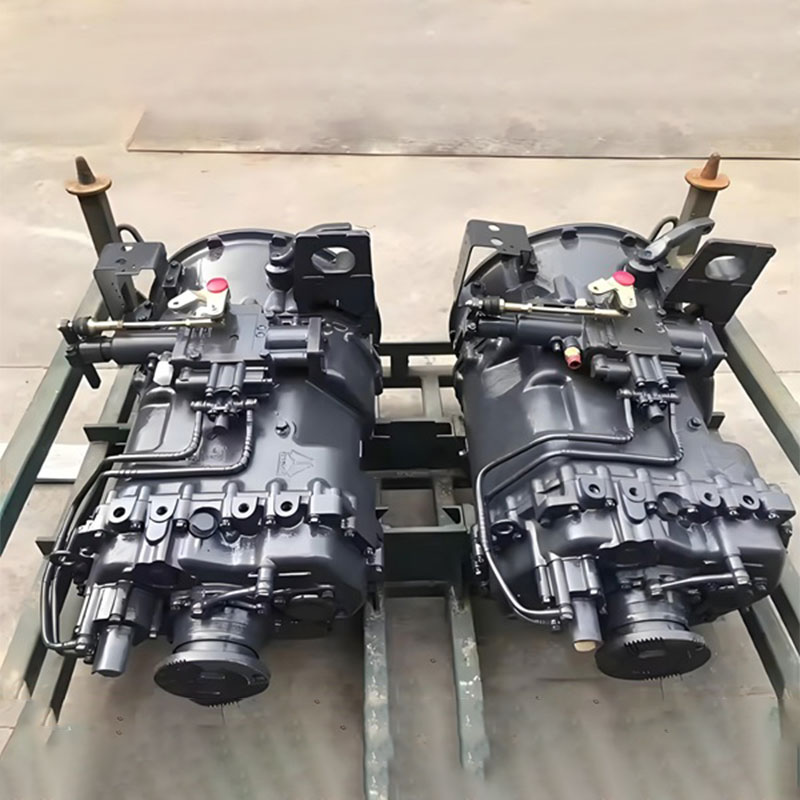

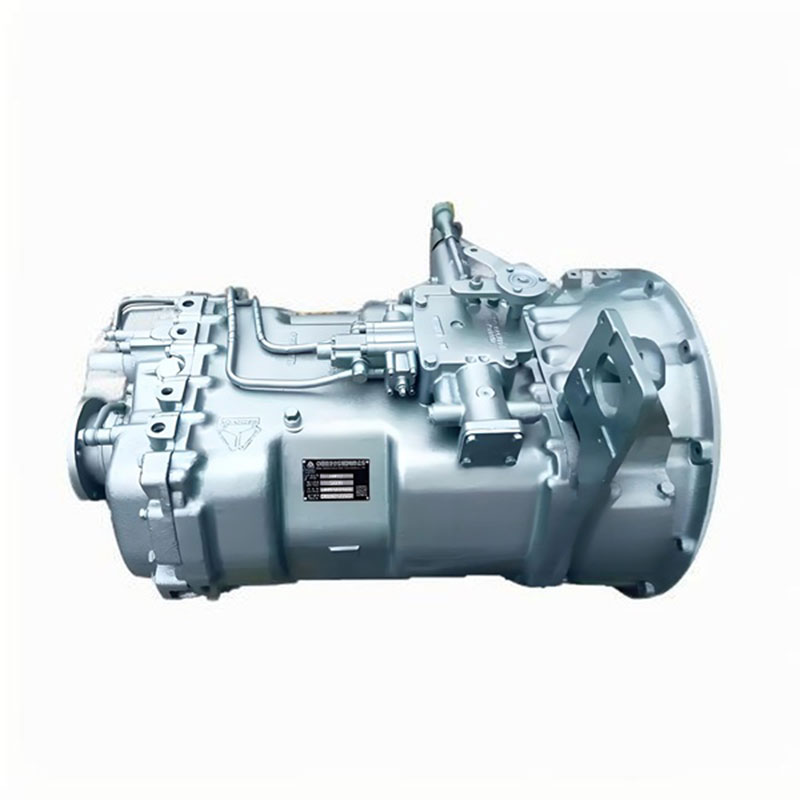

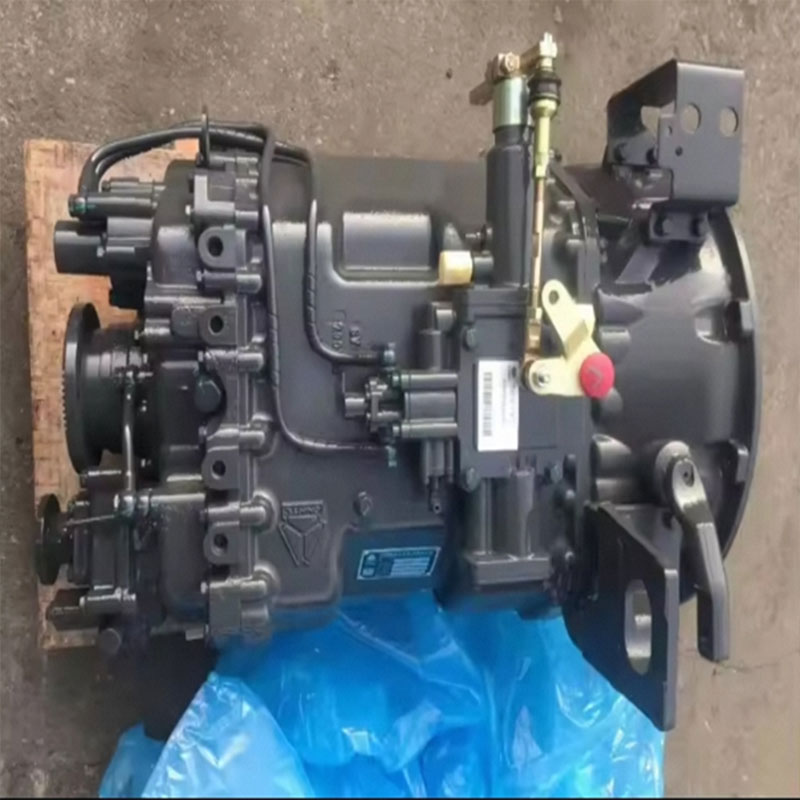

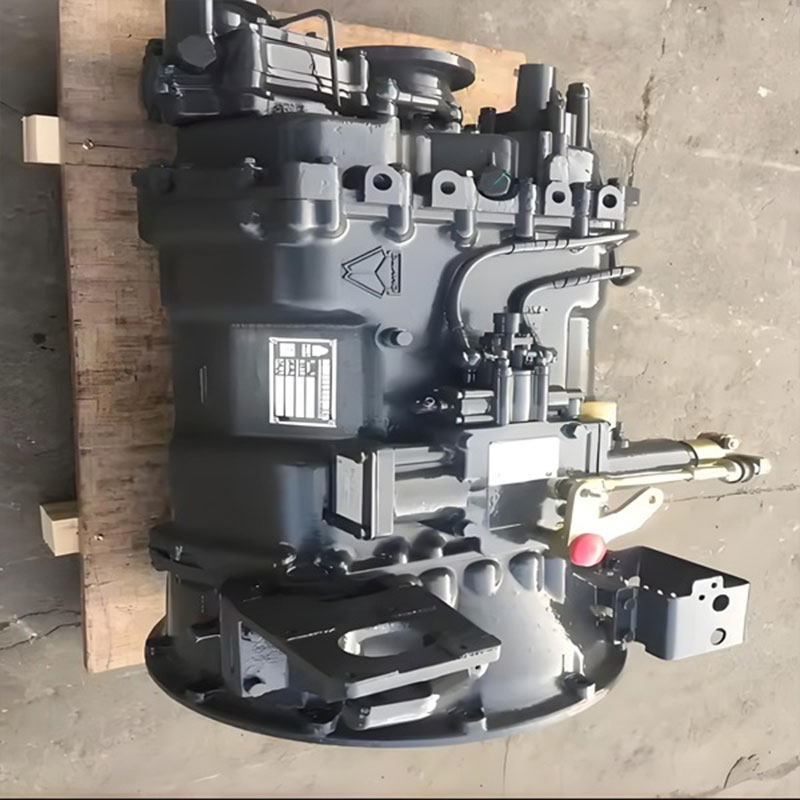

Reducer Gear Motor Worm Drive Gearbox

The Reducer Gear Motor Worm Drive Gearbox yopangidwa ndi kuperekedwa ndi Skyond ndi njira yotumizira mauthenga yogwira ntchito kwambiri yopangidwira ntchito zosiyanasiyana zamagalimoto ndi mafakitale. Wopangidwa kuti azitha kunyamula katundu wolemera wa torque komanso kugwira ntchito mosalekeza, bokosi la giya ili limagwira ntchito yofunika kwambiri pakuwongolera kuchepetsa liwiro komanso kukonza magwiridwe antchito pamakina oyendetsa magalimoto ndi makina amakina.

Monga gawo la SKD's professional supply chain of heavy-duty, mankhwalawa amatengedwa mosamala kuchokera ku magalimoto otsika, osamalidwa bwino. Chigawo chilichonse chimawunikiridwa, kuyesedwa, ndikuyeneretsedwa asanaperekedwe, kuwonetsetsa kuti geometry yamkati yamagetsi, kulumikizana kwa shaft, ndi magwiridwe antchito a nyongolotsi zimakhalabe m'malo ovomerezeka ovomerezeka.

Zogulitsazi zimagwirizana kwambiri ndi nsanja zamagalimoto monga HOWO ndi Shacman, zomwe zimawapangitsa kukhala njira yotsika mtengo koma yodalirika yokonza zombo, kusintha makina, ndi kukweza mafakitale.

Mafotokozedwe a Zamalonda

Zowonetsa Zamalonda

The Reducer Gear Motor Worm Drive Gearbox inapangidwa kuti isinthe zolowetsa zothamanga kwambiri, za torque yotsika kukhala zothamanga kwambiri, zotulutsa ma torque kwambiri. Izi zimapangitsa kuti zikhale zofunikira pamagalimoto olemetsa komanso makina opanga mafakitale komwe kuwongolera koyendetsedwa ndi ma torque kumafunikira.

Kapangidwe kake ka mphutsi kumatsimikizira:

· Kutumiza kwa torque mosalala

· Chiŵerengero chochepa kwambiri cha malo ophatikizika

· Kutha kudzitsekera (m’machunidwe enaake)

· Kuchepetsa kugwedezeka ndi phokoso pakugwira ntchito

Whether used in a HOWO truck transmission system or industrial conveyor machinery, this gearbox provides stable and predictable mechanical output under high load conditions.

Ubwino waukulu

1.Makina Abwino Kwambiri Okhulupirika

Magawo onse opangidwa ndi magwero amachokera ku magalimoto osankhidwa mosamala ang'onoang'ono kapena makina oyendetsedwa ndi mafakitale. Bokosi lililonse la gear limayang'aniridwa ndi makina, kuwonetsetsa kuti ma giya a meshing ndi mayanidwe a shaft amakhalabe m'malire otetezedwa.

2.High Surface Kuuma Technology

Zigawo za nyongolotsi zimathandizidwa pogwiritsa ntchito njira zotsogola za carburizing ndi kutentha, kukwaniritsa kuuma kwa 56-62 HRC. Izi zimathandizira kwambiri kukana kuvala ndikuwonjezera moyo wautumiki pansi pamikhalidwe yayikulu.

3.Stable ndi Precise Speed ​​​​Reduction

The worm drive system ensures a consistent reduction ratio, delivering smooth power transfer. This reduces mechanical shock and improves operational stability in variable load environments.

4.Compact Structural Design

The aluminum alloy and cast iron housing design allows for a balance between strength and weight reduction. This compact structure makes installation easier in confined mechanical spaces.

5.Ndalama Zowonongeka Zamakampani

Poyerekeza ndi magulu atsopano a gearbox, mayunitsi omwe amawunikiridwa amapulumutsa ndalama zambiri kwinaku akugwira ntchito yodalirika, kuwapangitsa kukhala abwino kwa oyendetsa zombo ndi malo okonzera.

Kapangidwe kazinthu & Zaumisiri

Reducer Gear Motor Worm Drive Gearbox inapangidwa mwaluso kwambiri yokhala ndi zida zapamwamba kwambiri komanso uinjiniya wolondola kwambiri kuti zitsimikizire kudalirika, kuchita bwino, komanso kukhazikika kwa nthawi yayitali. Chigawo chilichonse chimasankhidwa mosamala ndikukonzedwa kuti chikwaniritse zofunikira zamagalimoto olemetsa komanso makina amakampani.

1. Dongosolo la Nyumba

Nyumba ya bokosi la gear idapangidwa kuti ipereke umphumphu wokhazikika ndikuwongolera kulemera ndi kutayika kwa kutentha. Kutengera ndi kukula kwake komanso momwe akufunira, zinthu zosiyanasiyana zimagwiritsidwa ntchito:

Makulidwe 025–090: ADC12 aluminiyamu aloyi nyumba

Mapangidwe opepuka amachepetsa kulemera kwagalimoto kapena makina.

Kukaniza kwabwino kwa dzimbiri kumatsimikizira kulimba m'malo achinyezi, amchere, kapena ankhanza.

High thermal conductivity improves heat dissipation, maintaining stable operating temperatures even under continuous load.

Kukula 110–150: HT200 nyumba zachitsulo

Kumanga kwamphamvu kwambiri komwe kumatha kupirira kupsinjika kwamakina ndi katundu wama torque.

Kuvala kwabwino kwambiri komanso kukana kwamphamvu kwa kugwiritsidwa ntchito kwanthawi yayitali pamafakitale ndi zomangamanga.

Robust design maintains precise gear alignment under high-vibration conditions, ensuring reliable transmission performance.

This dual-material approach ensures that every gearbox, regardless of size, achieves the optimal balance between strength, weight, and thermal efficiency.

2. Worm Shaft Design

Shaft ya nyongolotsi ndiye gawo lalikulu la bokosi la gear, lomwe limayang'anira kusamutsa torque yayikulu ndikuchepetsa liwiro bwino. Zida zapamwamba komanso uinjiniya wolondola umagwiritsidwa ntchito kuti ukhale wolimba komanso wodalirika:

1. Zakuthupi: 20Cr aloyi chitsulo, chodziwika ndi kulimba kwake kopambana ndi kulimba kwake.

2. Profile: ZI involute precision geometry ensures accurate meshing with the worm wheel, minimizing backlash and improving torque transmission.

3. Surface Treatment: Carburized and precision ground to achieve a hardened surface layer of 0.3–0.5 mm, providing high wear resistance and fatigue strength.

4. Ubwino: Mathandizo ndi masankhidwe awa amaonetsetsa kuti shaft ya nyongolotsi imatha kupirira katundu wolemetsa, mosadukiza, osapindika, kugwira ntchito mokhazikika komanso mokhazikika kwa nthawi yayitali.

3. Maonekedwe a Wheel Wheel

The worm wheel works in precise coordination with the worm shaft to reduce speed and increase torque. Materials and processing are carefully selected to enhance performance and longevity:

Zofunika: CuSn10-1 tin bronze alloy, chinthu chofunika kwambiri chosamva kuvala.

Features: High friction resistance and low coefficient of sliding friction, which reduces energy loss and heat generation during operation.

Benefits: Provides smooth gear engagement, minimizes thermal expansion deformation, and ensures consistent performance under variable load conditions.

Zofunsira Zamalonda

Kusinthasintha kwa Reducer Gear Motor Worm Drive Gearbox kumalola kuti izigwira ntchito m'magawo angapo:

Magalimoto Olemera Kwambiri

Magalimoto otayira a HOWO: Kuchepetsa ma torque apamwamba ponyamula katundu wolemera.

Magalimoto a Shacman Logistics:  Kutumiza kodalirika pamapulogalamu onyamula katundu azitali.

Sinotruk transmission systems : Kugwirizana ndi mathirakiti oyendetsa magalimoto olemera kwambiri.

Magalimoto oyendetsa ntchito yomanga: Kuchita bwino komanso kokhazikika pansi pazovuta zogwirira ntchito.

Industrial Machinery

1. Makina a conveyor lamba – Kuchepetsa liwiro kwenikweni pogwira zinthu mosalekeza.

2. Material handling equipment – Ensures smooth motion and torque control for heavy payloads.

3. Automated production lines – Maintains consistent performance for assembly and processing machines.

4. Mayendetsedwe a makina a migodi – Zolimba komanso zosavunda pansi pa kulemedwa kwambiri ndi zinthu zopweteka.

Zida Zauinjiniya

Makina othandizira a Hydraulic – Kusintha kodalirika kwa torque pazida zoyendetsedwa ndi ma hydraulic.

Njira zonyamulira zolemera - Thandizo la ma torque apamwamba a ma cranes ndi zokwezera zamakampani.

Industrial torque conversion systems – Stable and precise speed reduction for specialized machinery applications.

This broad range of applications demonstrates the gearbox's adaptability, whether in heavy vehicles, industrial machinery, or engineering equipment requiring precise torque control.

Zomwe Timapereka

Skyond provides comprehensive services to ensure customers receive reliable products and full technical support throughout the entire purchasing and application process.

Technical Pre-Sales Communication

Tisanayambe kupanga kapena kutumiza, timatsimikizira magawo onse aukadaulo kuti titsimikizire kufanana kolondola kwazinthu. Izi zikuphatikiza miyeso, zofunikira za torque, kugwirizanitsa kwa kukhazikitsa, ndi momwe zimagwirira ntchito. Pogwiritsa ntchito njirayi, makasitomala akhoza kusankha Gearbox yoyenera kwambiri ya Reducer Gear Motor Worm Drive kuti agwiritse ntchito mwachidaliro komanso mwatsatanetsatane.

Thandizo Loyesa Zitsanzo

Timapereka mayunitsi achitsanzo kuti awonedwe asanayambe kuyitanitsa zambiri. Makasitomala amatha kuyesa magwiridwe antchito ndikuwunika momwe amagwirira ntchito, zomwe zimathandizira kuchepetsa kuwopsa kwa kugula ndikuwonetsetsa chidaliro chonse musanagule zazikulu.

Kupanga Kwambiri & Kuwongolera Ubwino

Kupanga kwakukulu kumangochitika pambuyo pa kuvomerezedwa kwachitsanzo. Gawo lililonse lakupanga limayang'aniridwa bwino ndi akatswiri odziwa zambiri komanso magulu owongolera zinthu, kuwonetsetsa kuti miyezo yopangira zinthu imakhazikika komanso magwiridwe antchito odalirika pamagawo onse a gearbox.

Pambuyo-Sales Technical Support

Timapereka chithandizo chopitilira pambuyo pogulitsa, kuphatikiza chitsogozo chaukadaulo, chithandizo chazovuta, ndi kukonza kapena kusinthanso zikafunika. Cholinga chathu ndikuwonetsetsa kukhazikika kwa nthawi yayitali komanso kukhutira kwamakasitomala.

Stable Supply & Kutumiza Mwachangu

Ndi kasamalidwe kapamwamba kosungiramo katundu ndi machitidwe owongolera zinthu, timakhalabe ndi mphamvu zokwanira zoperekera nthawi zonse komanso mwachangu. Izi zimatsimikizira kukonza mwachangu, kupezeka kokhazikika, komanso magwiridwe antchito odalirika padziko lonse lapansi.

Chifukwa Chosankha Skyond

Kusankha wothandizira wodalirika ndikofunikira kuti muwonetsetse kuti ntchito ndi moyo wautali wa Reducer Gear Motor Worm Drive Gearbox yanu. Skyond, ndi luso lake lalikulu lamakampani, njira zopangira zotsogola, komanso machitidwe ogwirira ntchito, yakhala bwenzi lodalirika kwa oyendetsa magalimoto olemera komanso ogwiritsa ntchito zida zamafakitale. Nazi zifukwa zisanu zofunika kutisankhira:

Zochitika Zazambiri Zamagalimoto Olemera Kwambiri

Timakhazikika pamakina otumizira mauthenga a HOWO, Shacman, ndi magalimoto ena olemetsa, komanso zida zochepetsera mafakitale. Ukadaulo wathu umatilola kupereka mayankho ofananirako ndi chithandizo chaukadaulo pamagalimoto osiyanasiyana ndi momwe amagwirira ntchito.

Zida Zapamwamba ndi Zopanga

Zofunikira zazikulu zimapangidwa ndi nyongolotsi zachitsulo za 20Cr alloy ndi CuSn10-1 mawilo osamva amkuwa amkuwa. Kupyolera mu carburizing ndi makina olondola, magawowa amapindula kwambiri, kukana kuvala bwino, komanso moyo wautali wautumiki.

Warehousing Wanzeru ndi Kutumiza Mwachangu

Ndi malo osungiramo zinthu anzeru opitilira 10,000㎡, timakwaniritsa kasamalidwe kolondola ka zinthu ndi kukonza madongosolo mwachangu, kuwongolera kwambiri liwiro la kutumiza ndikuwonetsetsa kudalirika kwapadziko lonse lapansi.

Mayankho Opanda Mtengo Ndi Thandizo Lonse

Timapereka mayunitsi ochita bwino kwambiri pamitengo yopikisana pomwe tikupereka chitsimikiziro chathunthu chogulitsa chisanadze ndi ntchito yogulitsa pambuyo pogulitsa, kuchepetsa ndalama zonse zokonzera ndikuwonetsetsa kukhutitsidwa kwamakasitomala.

FAQ

Q1: Kodi Skyond amaonetsetsa bwanji kuti gearbox ndi yabwino?

Yankho: Gearbox iliyonse ya Reducer Motor Worm Drive imawunikiridwa ndi makina onse, kuphatikizapo kuwunika kwa zida, kuyezetsa mozungulira, ndi kusanthula phokoso kuti zitsimikizire kuti zikugwira ntchito mokhazikika popanda kugwedezeka kwachilendo.

Q2: Nchiyani chimapangitsa 20Cr worm kukhala wapamwamba?

A:20Cr alloy steel provides high hardness after carburizing, enabling the worm shaft to withstand heavy torque loads while maintaining long-term dimensional stability.

Q3: Are these gearboxes compatible with HOWO trucks?

A: Inde. Many units are designed specifically for HOWO 371 dump trucks and related HW19710 transmission systems, ensuring strong compatibility.

Q4: Kodi gawo la gearbox logwiritsidwa ntchito limakhala lotani?

A:Depending on load conditions and maintenance, inspected used units can achieve long service cycles comparable to remanufactured assemblies.

Q5: Kodi ma gearbox awa angagwiritsidwe ntchito pamakina a mafakitale?

A: Inde. They are widely applied in conveyor systems, mining machinery, and automated production equipment requiring stable torque reduction.
